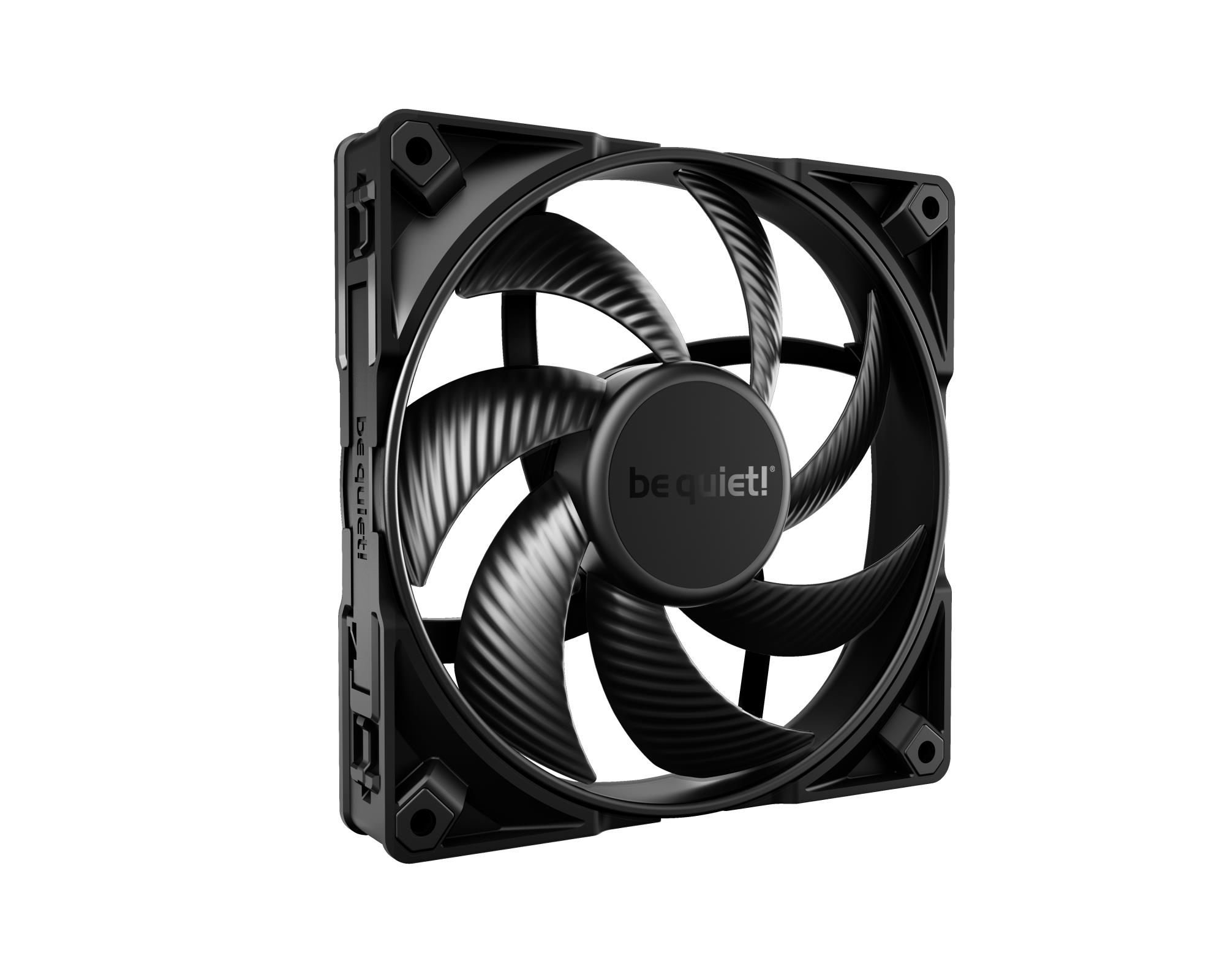

CASE FAN 140MM SILENT WINGS/PRO 4 BL099 BE QUIET

  • Produkta kods: BL099
  • EAN: 4260052188910
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

41.30

34.13 € (bez PVN 21%)

30

23.04.

Apraksts

Legendary silence, epic performance and features
For the highest performance, optimized fan blades, especially for heat sinks designed radiator corners and a speed switch with 3 selectable speed options, Silent Wings Pro 4 140mm PWM is the most progressive, performant, and versatile fan by be quiet!

  • Optimized fan blades for the highest performance on radiators and heat sinks
  • Speed switch allows changing maximum PWM speed between medium-speed, high-speed and ultra-high-speed (up to 2400 rpm)
  • Small tip clearance and a fan frame with a funnel-shaped air outlet for extremely high air pressure
  • Virtually inaudible operation at regular speed
  • 6-pole fan motor for less vibration and power consumption
  • Fluid-dynamic bearing enables very smooth operation
  • Individual and easy mounting systems for use as a case fan or with a radiator
  • Super-long life-span of up to 300,000h
  • Valuable sleeved PWM cable and easy to install PWM connector
  • Elegant look with high-grade fan sticker in an all-black design

Šim produktam ir 60 mēnešu garantija.

Parametri

Summarybe quiet! SILENT WINGS PRO 4 | 140mm PWM. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 2400 RPM, Airflow: 165.5 m³/h, Maximum air pressure: 3.64 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 7 - 13.2 V. Width: 140 mm, Depth: 140 mm, Height: 25 mm. Product colour: Black
Ražotājs datu lapahttps://www.bequiet.com/en/download/casefans/3698?utm_source=newsletter
Vienība kastes augstums0.03
Vienība kastes garums0.21
Vienība kastes platums0.16
Gaisa plūsma165.5 m³/h
Bearing tipsFluid Dynamic Bearing (FDB)
Ventilatora diametrs140 mm
Maksimālais gaisa spiediens3.64 mmH2O
Maksimālā gaisa plūsma97.41 cfm
Vidējais laiks between failures (MTBF)300000 h
Trokšņa līmenis (high speed)36.8 dB
Pulse-width modulācija (PWM) atbalstsYes
Daudzums uz pakotne1 pc(s)
Rotācijas ātrums (max)2400 RPM
Suitable atrašanās vietaComputer case
TipsFan
SertifikācijaCE / ROHS / RU / UKCA / TÜV / WEEE
Ventilatora savienotājs4-pin
Produkts krāsaBlack
Maksimālais strāva0.5 A
Barošanas consumption (typical)6 W
Rated strāva0.5 A
Rated spriegums12 V
Spriegums7 - 13.2 V
Kabeļa garums0.5 m
Dziļums140 mm
Ventilatora izmēri W X D X H140 x 140 x 25 mm
Augstums25 mm
Iepakojums dziļums206.5 mm
Iepakojums augstums31 mm
Iepakojums svars448 g
Iepakojums platums156 mm
Svars258 g
Platums140 mm
Numurs Of klipši4
Numurs of skrūves4
Skrūves iekļautaYes
Izcelsmes valstsGermany
Harmonizētās sistēmas (HS) kods84733080
Produkti uz piegāde (inner) korpuss32 pc(s)
Piegāde (inner) korpuss bruto svars15540 g
Piegāde (inner) korpuss augstums388 mm
Piegāde (inner) korpuss garums463 mm
Piegāde (inner) korpuss platums317 mm
ModelisBL099
Modelis NosaukumsSilent Wings Pro 4
Vienības uz palete0
Vienības uz piegāde kastes32
Vienība Calculated skaļums0.001657 cubm
Vienība Calculated svars0.486 kg
