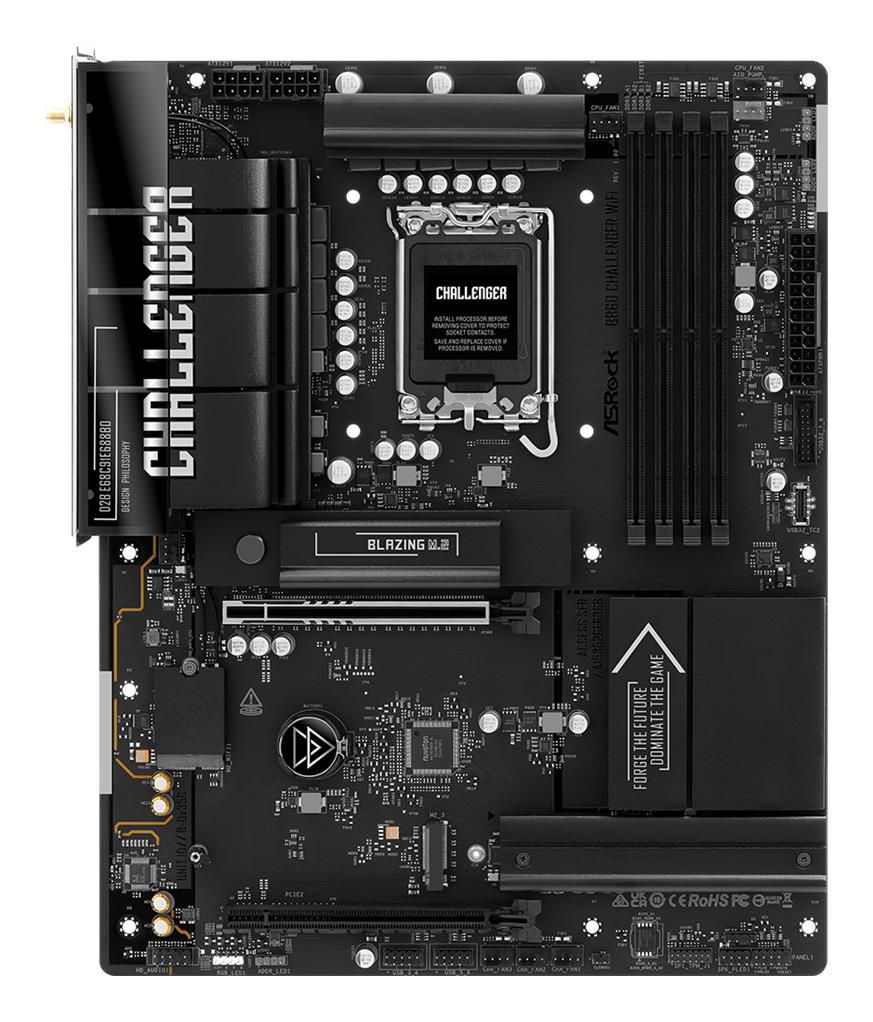

Mainboard|ASROCK|Intel B860|LGA 1851 (Socket V1)|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) slots|B860CHALLENGERWIFI

  • Produkta kods: B860 CHALLENGER WIFI
  • EAN: 4711581494190
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

178.69

147.68 € (bez PVN 21%)

1

23.04.

Apraksts

The Challenger Series motherboard represents fearless play, bold breakthroughs, and relentless evolution. With solid specs, Wi-Fi 7, and gamer-focused features like Lightning Gaming Ports and toolless installation, it’s a perfect choice for gamers.

Forge the Future Dominate the Game
Challenger Series is all about fearless play, bold breakthroughs, and relentless evolution. Packed with solid specs at a gamer-friendly price, it’s the ultimate option for gamers.

10+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

High Speed M.2 Solution

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

DIY Friendly Design
M.2 Heatsink Toolless Design

Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.

Intelligent Cooling Design

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
PWM/DC Fan Support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
Fan-Tastic Tuning
ASRock Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.

Wi-Fi 7

Enhanced VR Experience
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.

Wi-Fi 7 802.11be
Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.

Multi-link Operation(MLO)
Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

More than USB Transfer Speed
Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Nahimic Audio
Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
Ultimate Gaming Experience
- Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
- Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryAsrock B860 Challenger WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 5.0, M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Ražotājs datu lapahttps://www.asrock.com/MB/Intel/B860%20Challenger%20WiFi/index.asp
CnCode84733020
Vienība kastes augstums0.075
Vienība kastes garums0.35
Vienība kastes platums0.2
Audio mikroshēmaRealtek ALC897
Audio izvades kanāli7.1 channels
KomponentsPC
Motherboard mikroshēmu komplektsIntel B860
Motherboard mikroshēmu komplekts saimeIntel
Motherboard formas faktorsATX
Produkts krāsaBlack
Windows operētāj sistēmas atbalstītsWindows 11 x64
Saderīgs procesors sērijaIntel Core Ultra (Series 2)
Procesors ražotājsIntel
Procesors ligzdaLGA 1851 (Socket V1)
Atbalstīts procesors ligzdasLGA 1851
ECC СompatibilityNon-ECC
Maksimālais iekšējais atmiņa256 GB
Atmiņa kanāliDual-channel
Atmiņa sloti tipsDIMM
Numurs Of atmiņa sloti4
Atbalstīts atmiņa pulkstenis ātrums Max8666 MHz
Atbalstīts atmiņa pulkstenis ātrumi4400/4800/5600/6533/6800/8666 MHz
Atbalstīts atmiņa tipiDDR5-SDRAM
Nebuferēts atmiņaYes
Numurs of HDDs atbalstīts4
Numurs of glabāšana drives atbalstīts7
RAID līmeņi0/1/10/5
RAID atbalstsYes
Atbalstīts glabāšana dzinis InterfacesPCI Express 5.0,M.2,SATA III
Atbalstīts glabāšana dzinis tipiHDD & SSD
HDCPYes
HDCP versija2.3
Atbalstīts augsts dinamiskais diapazons (HDR)Yes
Paralēls apstrāde tehnoloģija atbalstsNot supported
12v Jauda SavienotājsYes
ATX barošanas savienotājs (24 kontaktu)Yes
CPU ventilatora savienotājsYes
Priekšējā panelis audio savienotājsYes
Priekšējā panelis savienotājsYes
Numurs Of šasijas ventilatora savienotāji4
Numurs Of CPU ventilatora savienotāji2
Numurs Of EATX barošanas savienotāji1
Numurs of SATA III savienotāji4
Numurs Of ūdens sūknis savienotāji1
RGB LED PIN HeaderYes
TPM savienotājsYes
USB 2 0 Connectors8
USB 3 2 Gen 1 3 1 Gen 1 Connectors9
USB 3 2 Gen 2 3 1 Gen 2 Connectors1
Ethernet LAN (RJ-45) pieslēgvietas1
HDMI portu skaits1
HDMI versija2.1
Ievades līnijaYes
Mikrofons inYes
USB 2.0 porti skaits2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A porti skaits6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C porti skaits1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A porti skaits2
WIFI AP Antena Jack2
BluetoothYes
Bluetooth Versija5.4
Ethernet Saskarne Tips2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
ETHERNET/LANYes
LAN kontrollerisDragon RTL8125BG
Augša Wi-Fi standartsWi-Fi 7 (802.11be)
Wi-FiYes
Wi-Fi standarti802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
1st M 2 augstākais PCI Express ģenerēšana5.0
1st M 2 lielākais atslēga izmērs2280
2nd M 2 augstākais PCI Express ģenerēšana4.0
2nd M 2 lielākais atslēga izmērs2280
3rd M 2 augstākais PCI Express ģenerēšana4.0
3rd M 2 lielākais atslēga izmērs2280
Numurs Of M 2 M sloti1
PCI Express X16 Gen 4 X Sloti1
PCI Express X16 Gen 5 X Sloti1
BIOS Flashback pogaYes
BIOS atmiņa izmērs256 Mbit
BIOS TipsUEFI AMI
Intel Extreme Atmiņa Profils XMPYes
Dziļums305 mm
Platums244 mm
Antena iekļautaYes
Komplektā iekļauti kabeļiSATA
M 2 atstatne iekļautaYes
Skrūves iekļautaYes
Atbilstības sertifikātiCE/Federal Communications Commission (FCC)
Sustainability certificatesErP
Vienības uz palete0
Vienības uz piegāde kastes5
Vienība Calculated skaļums0.008784 cubm
Vienība Calculated svars2.09 kg
