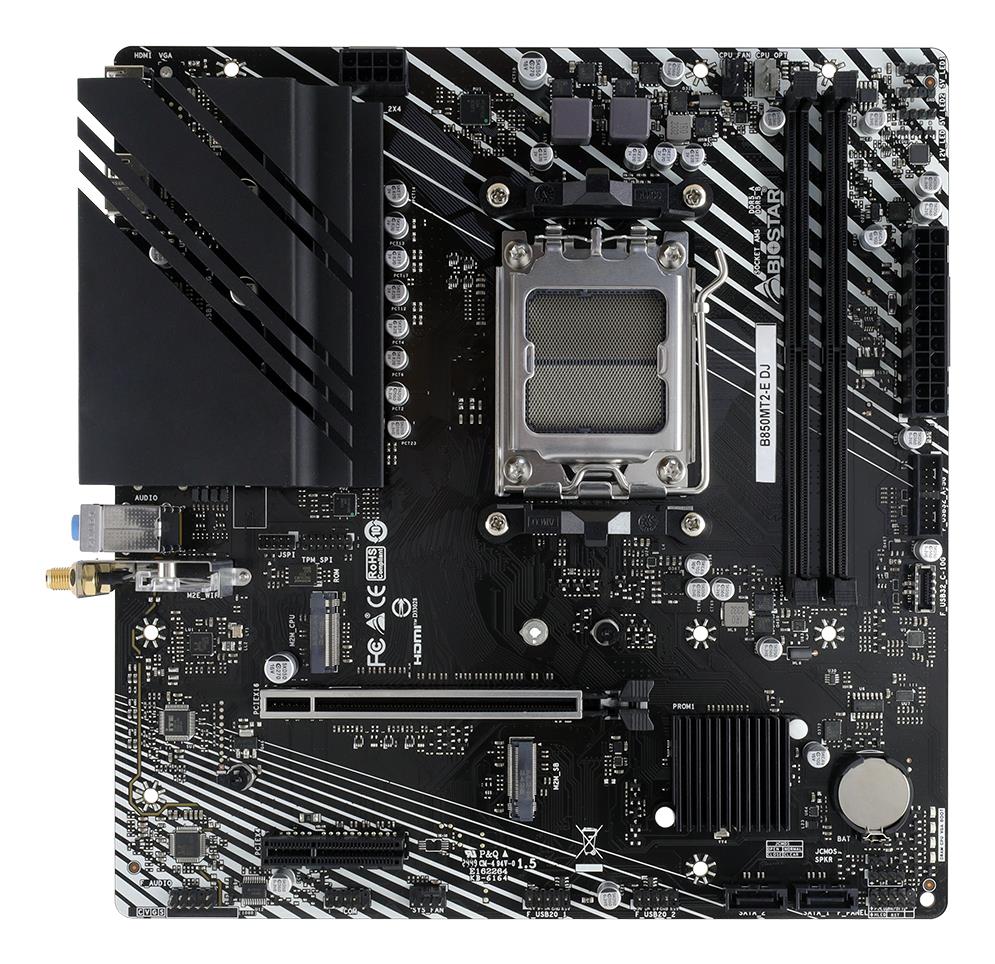

Mainboard|BIOSTAR|AMD B850|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|B850MT2-EDJ

  • Produkta kods: B850MT2-E DJ
  • EAN: 4712960688414
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

123.86 €

102.36 € (bez PVN 21%)

17

19.11.

Apraksts

AMD B850 chipset
The AMD B850 platform is the foundation for next-generation gaming and content creation experiences. Featuring enhanced overclocking capabilities, DDR5 memory support with AMD EXPO™ Technology, and PCIe® 5 connectivity for NVME storage, the AMD B850 platform is ready to power your desktop for years to come.

HD Audio
Provides high quality sound with minimal loss of audio fidelity.

Hi-Fi Ground
BIOSTAR Hi-Fi Ground (Golden Line) is noise-blocking multi-layer PCB design to isolates analog audio signals from digital sources. Unique PCB layout is ideal for exceptional clarity and high fidelity sound.

DisplayPort
DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio.

DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we\'ve redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.

HDMI® 2.1
HDMI® 2.1 supports true 4K resolution- 4096*2160@120hz. A significant increase in bandwidth is up to 18mbps, and significant enhancements are added to support the continued increase consumer demands on video and audio experience.

SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA II.

DDR5
DDR5 provides 50% higher bandwidth than DDR4, the frequency can be up to 6000+(OC)MHz, and can boasts the largest memory capacity available. It also supports dual channels and has lower power consumption, which can provide better performance and experience for overclockers.

PCIe 4.0
PCIe 4.0 is the ubiquitous and general-purpose PCI Express I/O standard. At 16GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 3.0, while preserving compatibility with software and mechanical interfaces.

PCIe 4.0 M.2
PCIe 4.0 M.2 delivers the highest bandwidth and lower latency. It is 2 times faster compared with PCIe 3.0 M.2.

USB 3.2 Gen2 Type-C
USB 3.2 Gen2 offers up to double the transfer speed of USB 3.2 Gen1 at 10 Gbps that allows for much higher data transfer rates and more efficient data transfer. And the Type-C connector is reversible so it\'s easier to plug in.

USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.

Digital PWM
Digital PWM controller is with dual-output multiphase that faster transient performance and accurately regulated frequency control. It can be enabled to greatly increase system efficiency.

2.5 GbE LAN
The 2.5 GbE LAN offers faster transmission speeds compared to traditional 1 GbE LAN and is currently the mainstream transmission speed. It enhances data transmission speeds among devices within a local area network, making it particularly suitable for scenarios requiring large-scale data transfer.

Super Durable Solid Caps
The best quality solid state capacitors with ultra low ESR design, the Super Durable Solid Caps doubles the lifespan.

Iron Slot Protection
The exclusive Iron Slot Protection can reinforce PCI-E x16 slots to handle heavier graphics cards, prevent bending, and extend longevity of the slot, making the new-gen RACING Series much more robust.

Super Durable Inductor
Super Durable Inductor brings the benefits of higher current capacity, lower energy loss and better power stability.

Moistureproof PCB
The PCB will be oxidizing easily by damp or absorbed moisture, and ionic migration or CAF (Conductive Anodic Filament) will be generated. Moistureproof PCB meets high density and high reliability requirements for moisture proof.

ESD Protection
ESD (Electrostatic Discharge) is the major factor to destroy the PC by electrical overstress (EOS) condition. ESD occurred by PC users when touch any devices connect to a PC, which may result in damage to the motherboard or parts. ESD protection is designed to protect the motherboard and equipment from damage by EOS.

OC / OV / OH Protection
OC / OV / OH Protection design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect your system.

VIVID LED DJ
The VIVID LED DJ has launched a brand-new interface that offers better compatibility with peripheral devices, delivering the best lighting experience to users and allowing them to create a unique personal style.

UEFI BIOS
Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons lead users into the setup layer directly.

BIO-Flasher
BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with only a few clicks without preparing an additional floppy disk or other complicated flash utility.

A.I FAN
With A.I FAN users can ensure that their gaming PC can maintain its performance while staying cool. According to different cooling needs and usage scenarios, users can control speed modes. Allows users to have more customizability of fan modes and automatically detects different temperatures to make fan operate at defined speed for optimal cooling performance.

LED ROCK ZONE
LED ROCK ZONE comes with the RGB 12V LED header and Digital 5V LED header which offer more colorful lighting options to DIY lovers. Adjusting the color of LED and changing system colors by VIVID LED DJ will make you fully enjoy the process of PC modding developing your personal style.

BIOSTAR RGB SYNC
BISOTAR RGB SYNC is designed to create your personalized lighting effects. Let all the RGB peripherals and components sync together.

Debug LED
Debug LED helps you identify any issues going with your board or hardware. When error occurs, the corresponding LED lights will inform you on the status of your board or hardware to shorten the test time effectively.

A.I TP Control
A.I TP Control is designed for overclockers. It provides a user-friendly BIOS environment that overclockers can adjust the temperature setting to keep your PC safe and enjoy extreme overclocking performance.

Smart Update
Biostar Smart Update is a utility that can help users run online update. It can download the drivers for your motherboard from Biostar official website and install them automatically.

SMART BIOS UPDATE
The easiest way to update the BIOS is provided.
Connect the USB driver to the SMART BIOS USB port to update.

Auto Installer
The Auto Installer is capable of automatically installing the required drivers on Windows OS, providing users with a more intuitive and convenient experience, eliminating the hassle of manually searching for drivers.

HDMI®
The terms HDMI® and HDMI® High-Definition Multimedia Interface, and the HDMI® Logo are trademarks or registered trademarks of HDMI® Licensing Administrator, Inc. in the United States and other countries.

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 series Processors
  • AMD B850 single chip architecture
  • Supports 2-DIMM DDR5 up to 128 GB Memory
  • Supports PCIe 4.0 M.2
  • Supports HDMI® & Display Port
  • Supports 2.5 GbE LAN
  • Supports USB 3.2 Gen2 Type C
  • Supports WiFi 7 & 6E module (No WiFi card included)

Šim produktam ir 36 mēnešu garantija.

Parametri

KopsavilkumsBiostar B850MT2-E DJ. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, PCI Express 4.0, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125D, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ražotāja datu lapahttps://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1177
Vienības kastes augstums0.065
Vienības kastes garums0.28
Vienības kastes platums0.26
product_attr.MATES_PLATES_CHIPSETAMD B850
product_attr.AUDIO_MIKROSHEMARealtek ALC897
Produkta krāsaMelns
product_attr.KOMPONENTEPC (dators)
Mātesplates formas faktorsmikro ATX
product_attr.AUDIO_IZVADES_KANALI7.1 kanāli
product_attr.MATESPLATES_MIKROSHEMOJUMA_SAIMEAMD
Atbalstītās Windows operētājsistēmasWindows 10 x64/Windows 11 x64
product_attr.PROCESORA_RAZOTAJSAMD
Procesora ligzdaAM5 pieslēgvieta
Savietojamie procesoriAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Atbalstītās procesoru ligzdasAM5 pieslēgvieta
Atbalstītie atmiņas veidiDDR5-SDRAM
product_attr.ATMINAS_SLOTU_SKAITS2
product_attr.ATMINAS_SLOTU_TIPSDIMM
product_attr.ATMINAS_KANALIDuālais kanāls
product_attr.ECC_SAVIETOJAMIBANon-ECC
product_attr.ATBALSTITA_ATMINAS_TAKTS_FREKVENCE_MAKS8000 MHz
Maksimālā iekšējā atmiņa128 GB
product_attr.NEBUFERETA_ATMINAJā
Atbalstītie atmiņas disku veidiHDD & SSD
Atbalstītie glabāšanas diska interfeisiSATA III,PCI Express 4.0
product_attr.ATBALSTITAIS_UZGLABASANAS_DISKDZINU_SKAITS4
Atbalsta RAIDJā
RAID līmeņi0/1/10
product_attr.PARALELAS_APSTRADES_TEHNOLOGIJAS_ATBALSTSNetiek atbalstīts
HDCPJā
DirectX versija12.0
product_attr.USB_20_SAVIENOTAJI2
product_attr.USB_32_GEN_1_31_GEN_1_SAVIENOTAJI1
product_attr.USB_32_GEN_2_31_GEN_2_SAVIENOTAJI1
product_attr.SATA_III_SAVIENOTAJU_SKAITS2
product_attr.PRIEKSEJA_PANELA_AUDIO_SAVIENOTAJSJā
product_attr.PRIEKSEJA_PANELA_SAVIENOTAJSJā
ATX barošanas savienotājsJā
product_attr.CPU_VENTILATORA_SAVIENOJUMSJā
product_attr.PROCESORA_VENTILATORU_KONEKTORU_SKAITS1
product_attr.EPS_BAROSANAS_SAVIENOTAJS_8PINJā
product_attr.EPS_BAROSANAS_KONEKTORU_SKAITS_8_KONTAKTI1
product_attr.COM_SAVIENOTAJI1
product_attr.TPM_SAVIENOTAJSJā
product_attr.RGB_LED_TAPU_SAVIENOTAJSJā
USB 2.0 pieslēgvietu skaits2
product_attr.USB_32_GEN_1_31_GEN_1_A_TIPA_PIESLEGVIETU_SKAITS4
Ethernet LAN RJ45 pieslēgvietu skaits1
HDMI pieslēgvietu skaits1
HDMI Versija2.1
product_attr.DISPLAYPORTS_DAUDZUMS1
product_attr.DISPLAYPORT_VERSIJA1.2
Austiņu izejas3
Mikrofona / līnijas izejaJā
product_attr.WIFIAP_ANTENAS_SPRAUDNIS2
USB savienotājsUSB Type-A
Ethernet LAN savienojumsJā
product_attr.ETHERNET_INTERFEISA_TIPS2.5 Gigabit Ethernet/Ātrais Ethernet/Tīkls Gigabit Ethernet
product_attr.LAN_KONTROLLERSRealtek RTL8125D
Wi-FiJā
product_attr.WIFI_STANDARTSWi-Fi 7 (802.11be)
BluetoothJā
product_attr.PCI_EXPRESS_X4_GEN_4X_SLOTI1
product_attr.PCI_EXPRESS_X16_GEN_4X_LIGZDAS1
product_attr.M2_M_SLOTU_SKAITS2
product_attr.PIRMAIS_M2_LIELAKAIS_ATSLEGAS_IZMERS2280
product_attr.PIRMA_M2_AUGSTAKA_PCI_EXPRESS_PAAUDZE4.0
product_attr.OTRAIS_M2_LIELAKAIS_ATSLEGAS_IZMERS2280
product_attr.OTRA_M2_AUGSTAKA_PCI_EXPRESS_PAAUDZE4.0
product_attr.BIOS_TIPSUEFI AMI
product_attr.NODZEST_CMOS_SAVIENOTAJVADSJā
Platums235 mm
Dziļums244 mm
Pievienoti kabeļiSATA
product_attr.VIENIBAS_APREKINATAIS_SVARS1.1 kg
product_attr.PRECES_NETO_SVARS0.7 kg
Vienības aprēķinātais tilpums0.005423 cubm
product_attr.VIENIBU_SKAITS_VIENA_SUTIJUMA_KASTE10
Kastes svars11 kg
product_attr.VIENIBAS_PLATUMS26 cm
Kastes augstums28.5 cm
product_attr.VIENIBAS_DZILUMS28 cm
Kastes dziļums64.5 cm
product_attr.VIENIBAS_AUGSTUMS6.5 cm
Kastes platums29.5 cm
NosaukumsMB AMD B850 SAM5 MATX/B850MT2-E DJ BIOSTAR
ModelisB850MT2-E DJ
