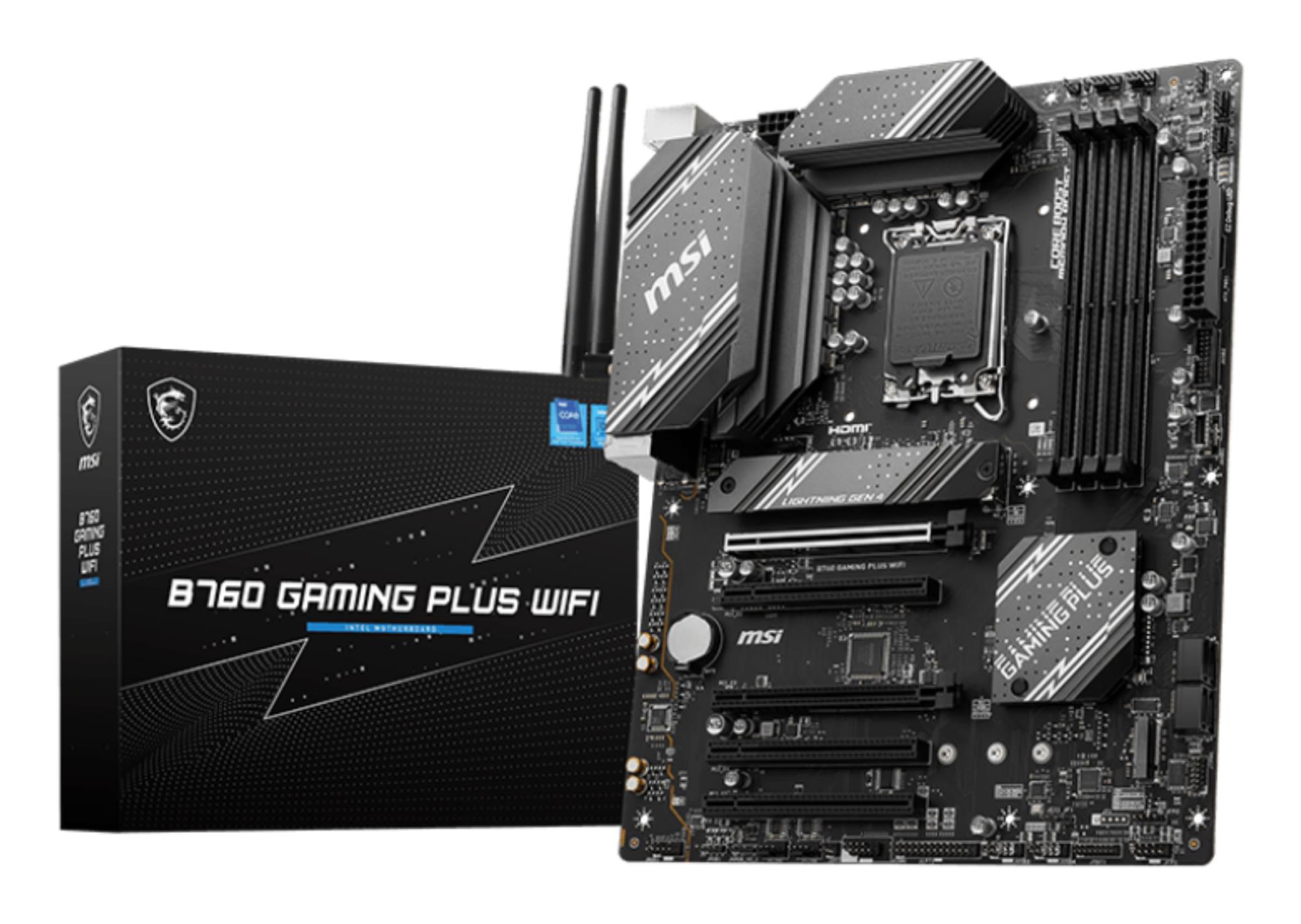

Mainboard|MSI|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|5xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|2xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|B760GAMINGPLUSWIFI

  • Produkta kods: B760GAMINGPLUSWIFI
  • EAN: 4711377086561
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

184.92

152.83 € (bez PVN 21%)

0

Paredzamā pieejamība:22.09.2026.

Apraksts

B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

12+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, B760 GAMING PLUS WIFI is ready to sustain heavy daily work.

EZ M.2 CLIP
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

MSI DRIVER UTILITY INSTALLER
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.

FAST AND FUTURE-READY STORAGE
B760 GAMING PLUS WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B760 GAMING PLUS WIFI motherboards are ready to deliver the world class memory performance.

CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

MSI CENTER
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

EXCLUSIVE UI OF AIDA64 EXTREME
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

OPT-IN TO CYBER SAFETY WITH NORTON 360 DELUXE
Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.

RESIZABLE BAR
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI\'s premium network solution provides incredible data transfer speed for demanding users.

Šim produktam ir 36 mēnešu garantija.

Parametri

KopsavilkumsMSI B760 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Ražotāja datu lapahttps://www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI/Specification
CN kods84733020
Vienības kastes augstums0.07
Vienības kastes garums0.35
Vienības kastes platums0.272
Mātesplates mikroshēmu komplektsIntel B760
Audio mikroshēmaRealtek ALC897
Produkta krāsaBlack
KomponentsPC
Mātesplates formas faktorsATX
Audio izvades kanāli7.1 channels
Mātesplates mikroshēmu komplekta saimeIntel
Atbalstītās Windows operētājsistēmasWindows 10 x64/Windows 11 x64
Procesora ražotājsIntel
Procesora ligzdaLGA 1700
Saderīgo procesoru sērijaIntel® Celeron®/Intel® Pentium® Gold
Atbalstītie atmiņas tipiDDR5-SDRAM
Atmiņas slotu skaits4
Atmiņas slotu tipsDIMM
Atmiņas kanāliDual-channel
ECC saderībaNon-ECC
Maksimālā iekšējā atmiņa192 GB
Atbalstītās glabāšanas disku saskarnesM.2,SATA
RAID atbalstsYes
RAID līmeņi0/1/10/5
Iebūvētā grafikas karteNo
USB 2.0 savienotāji4
USB 3.2 Gen 1 (3.1 Gen 1) savienotāji3
SATA III savienotāju skaits4
S/PDIF izejas savienotājsYes
TPM savienotājsYes
USB 2.0 portu skaits4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A portu skaits2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C portu skaits1
Ethernet LAN (RJ-45) pieslēgvietas1
HDMI portu skaits1
HDMI versija2.1
DisplayPort pieslēgvietu skaits1
DisplayPort versija1.4
S/PDIF izejas portsYes
Ethernet/LANYes
Ethernet saskarnes tips2.5 Gigabit Ethernet
LAN kontrollerisDragon RTL8125BG
Wi-FiYes
Augstākais Wi-Fi standartsWi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth versija5.3
PCI Express x1 sloti3
PCI Express x1 (Gen 3.x) sloti3
PCI Express x16 sloti2
PCI Express x16 (Gen 4.x) sloti2
M.2 M slotu skaits2
Platums243.84 mm
Dziļums304.8 mm
Vienības aprēķinātais svars1.49 kg
Produkta neto svars1.2 kg
Vienības aprēķinātais tilpums0.006664 cubm
Vienības piegādes kastē1
Kastes svars1.49 kg
Kastes augstums7 cm
Kastes dziļums35 cm
Kastes platums27.2 cm
NosaukumsMB B760 S1700 ATX/B760 GAMING PLUS WIFI MSI
ModelisB760 GAMING PLUS WIFI
