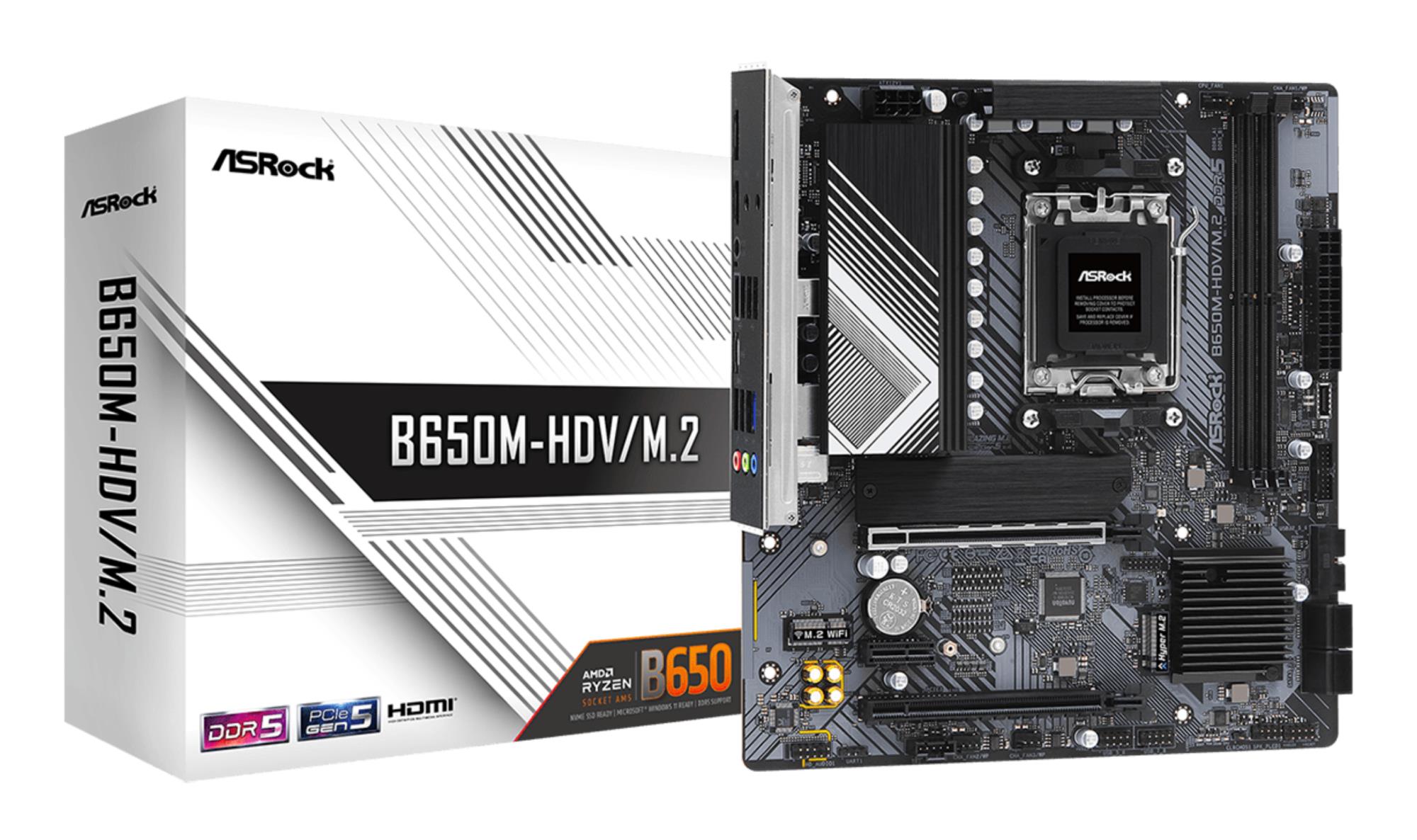

Mainboard|ASROCK|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|B650M-HDV/M.2

  • Produkta kods: B650M-HDV/M.2
  • EAN: 4710483942693
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

129.41 €

106.95 € (bez PVN 21%)

30

23.11.

Apraksts

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

8+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

Reinforced Steel Slot
[PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

Ultimate Gaming Experience
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 8+2+1 Power Phase, Dr.MOS
  • Supports DDR5 6400+ MHz (OC)
  • 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics*
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4)
  • 1 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen2 Front Type-C
  • 7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback

Šim produktam ir 36 mēnešu garantija.

Parametri

KopsavilkumsAsrock B650M-HDV/M.2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Ražotāja datu lapahttps://www.asrock.com/mb/AMD/B650M-HDVM.2/
Vienības kastes augstums0.06
Vienības kastes garums0.28
Vienības kastes platums0.26
product_attr.MATES_PLATES_CHIPSETAMD B650
product_attr.AUDIO_MIKROSHEMARealtek ALC897
product_attr.KOMPONENTEDatoriem
Mātesplates formas faktorsMicro ATX
product_attr.AUDIO_IZVADES_KANALI7.1 kanāli
product_attr.MATESPLATES_MIKROSHEMOJUMA_SAIMEAMD
Atbalstītās Windows operētājsistēmasWindows 10 x64/Windows 11 x64
product_attr.PROCESORA_RAZOTAJSAMD
Procesora ligzdaSocket AM5
Savietojamie procesoriAMD Ryzen 7
Atbalstītie atmiņas veidiDDR5-SDRAM
product_attr.ATMINAS_SLOTU_SKAITS2
product_attr.ATMINAS_SLOTU_TIPSDIMM
product_attr.ECC_SAVIETOJAMIBANon-ECC
Maksimālā iekšējā atmiņa64 GB
product_attr.NEBUFERETA_ATMINAY
Atbalstītie atmiņas disku veidiHDD & SSD
Atbalstītie glabāšanas diska interfeisiM.2,SATA III
Atbalsta RAIDY
RAID līmeņi0/1/10
product_attr.USB_20_SAVIENOTAJI2
product_attr.USB_32_GEN_1_31_GEN_1_SAVIENOTAJI2
product_attr.USB_32_GEN_2_31_GEN_2_SAVIENOTAJI1
product_attr.SATA_III_SAVIENOTAJU_SKAITS4
product_attr.PRIEKSEJA_PANELA_AUDIO_SAVIENOTAJSY
ATX barošanas savienotājsY
product_attr.CPU_VENTILATORA_SAVIENOJUMSY
product_attr.EPS_BAROSANAS_SAVIENOTAJS_8PINY
product_attr.TPM_SAVIENOTAJSY
product_attr.ZIBENS_SPERIENA_GALVENES1
USB 2.0 pieslēgvietu skaits4
product_attr.USB_32_GEN_1_31_GEN_1_A_TIPA_PIESLEGVIETU_SKAITS2
product_attr.USB_32_GEN_1_31_GEN_1_C_TIPA_PIESLEGVIETU_SKAITS1
Ethernet LAN RJ45 pieslēgvietu skaits1
HDMI pieslēgvietu skaits1
product_attr.DISPLAYPORTS_DAUDZUMS1
product_attr.DISPLAYPORT_VERSIJA1.4
Līnijas ieejaY
Mikrofona / līnijas izejaY
Ethernet LAN savienojumsY
product_attr.ETHERNET_INTERFEISA_TIPS2.5 Gigabit Ethernet
product_attr.LAN_KONTROLLERSRealtek RTL8125-BG
Wi-FiN
product_attr.PCI_EXPRESS_X1_GEN_4X_LIGZDAS1
product_attr.PCI_EXPRESS_X16_GEN_4X_LIGZDAS1
product_attr.M2_M_SLOTU_SKAITS1
product_attr.BIOS_TIPSEFI AMI
product_attr.BIOS_ATMINAS_IZMERS256 Mbit
Platums244 mm
Dziļums226 mm
product_attr.VIENIBAS_APREKINATAIS_SVARS1.33 kg
product_attr.PRECES_NETO_SVARS1.1 kg
Vienības aprēķinātais tilpums0.00529 cubm
product_attr.VIENIBU_SKAITS_VIENA_SUTIJUMA_KASTE10
Kastes svars13.33 kg
product_attr.VIENIBAS_PLATUMS26 cm
product_attr.VIENIBU_SKAITS_UZ_PALETES0
Kastes augstums29 cm
product_attr.VIENIBAS_DZILUMS28 cm
Kastes dziļums57 cm
product_attr.VIENIBAS_AUGSTUMS6 cm
Kastes platums32 cm
NosaukumsMB AMD B650 SAM5 MATX/B650M-HDV/M.2 ASROCK
ModelisB650M-HDV/M.2
