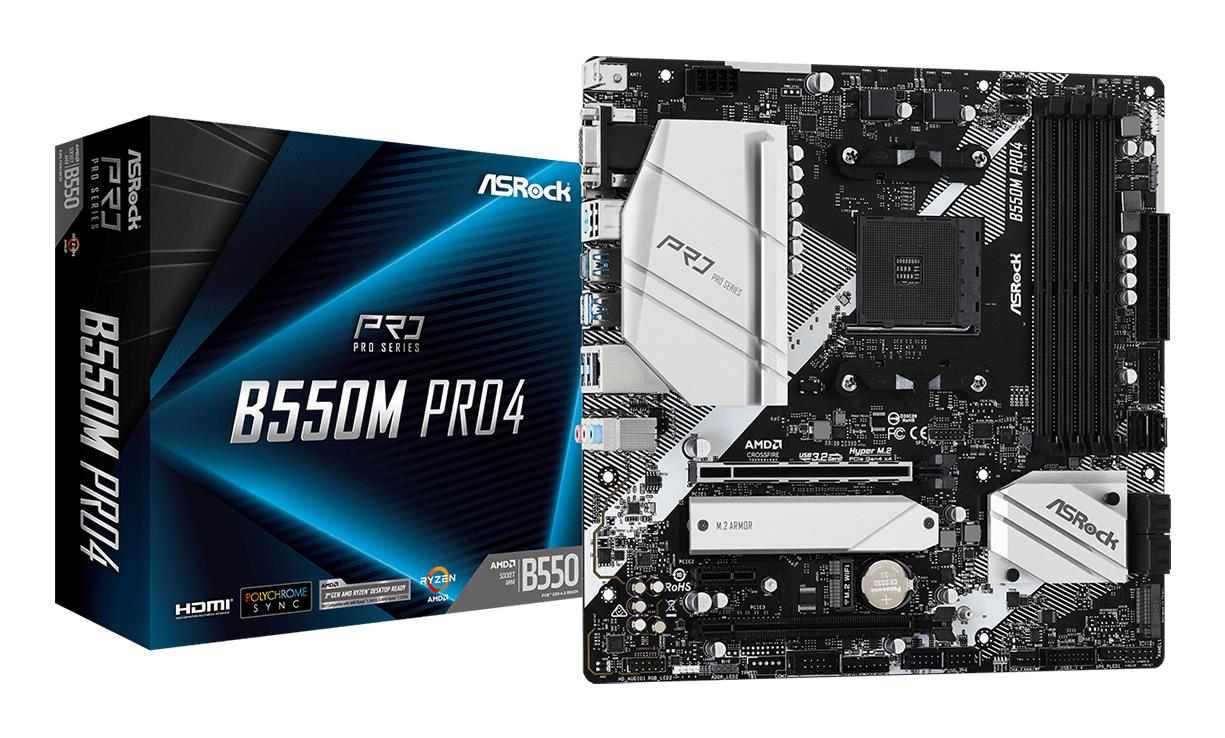

Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B550MPRO4

  • Produkta kods: B550MPRO4
  • EAN: 4710483931598
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

120.81 €

99.84 € (bez PVN 21%)

20

23.11.

Apraksts

IT’S TIME FOR B550 MOTHERBOARDS
Everything You Need For Computing

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it\'s able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
  • 8 Power Phase Design, Digi Power
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • AMD CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
  • Realtek Gigabit LAN

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsAsrock B550M Pro4. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX, Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Ražotāja datu lapahttps://www.asrock.com/mb/AMD/B550M%20Pro4/#Overview
Vienības kastes augstums0.26
Vienības kastes garums0.06
Vienības kastes platums0.28
product_attr.MATES_PLATES_CHIPSETAMD B550
product_attr.AUDIO_MIKROSHEMARealtek ALC1200
product_attr.PERSONALDATORA_VESELIBAS_UZRAUDZIBACPU/Spriegums/Temperatūra/Ventilators
product_attr.KOMPONENTEDatoriem
Mātesplates formas faktorsMicro ATX
product_attr.AUDIO_IZVADES_KANALI7.1 kanāli
product_attr.MATESPLATES_MIKROSHEMOJUMA_SAIMEAMD
Atbalstītās Windows operētājsistēmasWindows 10 x64/Windows 11 x64
SertifikācijaFCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
product_attr.PROCESORA_RAZOTAJSAMD
Procesora ligzdaSocket AM4
Savietojamie procesoriAMD Ryzen 3000 Series
product_attr.SMO_PROCESORU_MAKSIMALAIS_SKAITS1
Atbalstītās procesoru ligzdasSocket AM4
Atbalstītie atmiņas veidiDDR4-SDRAM
product_attr.ATMINAS_SLOTU_SKAITS4
product_attr.ATMINAS_SLOTU_TIPSDIMM
product_attr.ATMINAS_KANALIDual-channel
product_attr.ECC_SAVIETOJAMIBAAr ECC un bez ECC
product_attr.ATBALSTITIE_ATMINAS_PULKSTENA_ATRUMI2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
product_attr.ATBALSTITA_ATMINAS_TAKTS_FREKVENCE_MAKS4733 MHz
product_attr.ATBALSTITAS_ATMINAS_MODULA_KAPACITATES16GB/32GB/4GB/8GB
Maksimālā iekšējā atmiņa128 GB
product_attr.NEBUFERETA_ATMINAY
Atbalstītie atmiņas disku veidiHDD & SSD
Atbalstītie glabāšanas diska interfeisiM.2,SATA III
Atbalsta RAIDY
RAID līmeņi0/1/10
product_attr.PARALELAS_APSTRADES_TEHNOLOGIJAS_ATBALSTSCrossFireX/Quad-GPU CrossFireX
Maksimālā izšķirtspēja5120 x 2880 pikseļi
HDCPY
DirectX versija12.0
product_attr.ATBALSTITAIS_EKRANU_SKAITS3
product_attr.USB_20_SAVIENOTAJI2
product_attr.USB_32_GEN_1_31_GEN_1_SAVIENOTAJI2
product_attr.SATA_II_SAVIENOTAJU_SKAITS6
product_attr.PRIEKSEJA_PANELA_AUDIO_SAVIENOTAJSY
product_attr.PRIEKSEJA_PANELA_SAVIENOTAJSY
ATX barošanas savienotājsY
product_attr.CPU_VENTILATORA_SAVIENOJUMSY
product_attr.KOMUTATORA_VENTILATORU_SKAITS4
product_attr.EPS_BAROSANAS_SAVIENOTAJS_8PINY
product_attr.12V_STRAVAS_SAVIENOTAJSY
product_attr.COM_SAVIENOTAJI1
product_attr.TPM_SAVIENOTAJSY
product_attr.RGB_LED_TAPU_SAVIENOTAJSY
USB 2.0 pieslēgvietu skaits2
product_attr.USB_32_GEN_1_31_GEN_1_A_TIPA_PIESLEGVIETU_SKAITS4
product_attr.USB_32_GEN_2_31_GEN_2_A_TIPA_PIESLEGVIETU_SKAITS1
product_attr.USB_32_GEN_2_31_GEN_2_C_TIPA_PIESLEGVIETU_SKAITS1
Ethernet LAN RJ45 pieslēgvietu skaits1
product_attr.PS2_PIESLEGVIETU_SKAITS1
VGA D-Sub pieslēgvietu skaits1
HDMI pieslēgvietu skaits1
HDMI Versija2.1
product_attr.DISPLAYPORTS_DAUDZUMS1
product_attr.DISPLAYPORT_VERSIJA1.4
Mikrofona / līnijas izejaY
Ethernet LAN savienojumsY
product_attr.ETHERNET_INTERFEISA_TIPSGigabit Ethernet
product_attr.LAN_KONTROLLERSRealtek RTL8111H
Ieslēgšanās pie signāla no LANY
Wi-FiN
product_attr.PCI_EXPRESS_X1_GEN_3X_SLOTI1
product_attr.PCI_EXPRESS_X16_GEN_3X_SLOTI1
product_attr.PCI_EXPRESS_X16_GEN_4X_LIGZDAS1
product_attr.M2_M_SLOTU_SKAITS3
product_attr.BIOS_TIPSUEFI AMI
product_attr.BIOS_ATMINAS_IZMERS256 Mbit
product_attr.ACPI_VERSIJA5.1
product_attr.SISTEMAS_PARVALDIBAS_BIOS_SMBIOS_VERSIJA2.3
product_attr.HARMONIZETAS_SISTEMAS_HS_KODS84733020
Platums244 mm
Dziļums244 mm
Augstums70 mm
Pievienoti kabeļiSATA
Draiveri iekļautiY
Svars465 g
product_attr.VIENIBAS_APREKINATAIS_SVARS1.39 kg
product_attr.PRECES_NETO_SVARS1.1 kg
Vienības aprēķinātais tilpums0.005011 cubm
product_attr.VIENIBU_SKAITS_VIENA_SUTIJUMA_KASTE20
Kastes svars27.8 kg
product_attr.VIENIBAS_PLATUMS28 cm
Kastes augstums54 cm
product_attr.VIENIBAS_DZILUMS6 cm
Kastes dziļums64 cm
product_attr.VIENIBAS_AUGSTUMS26 cm
Kastes platums29 cm
NosaukumsMB AMD B550 SAM4 MATX/B550M PRO4 ASROCK
