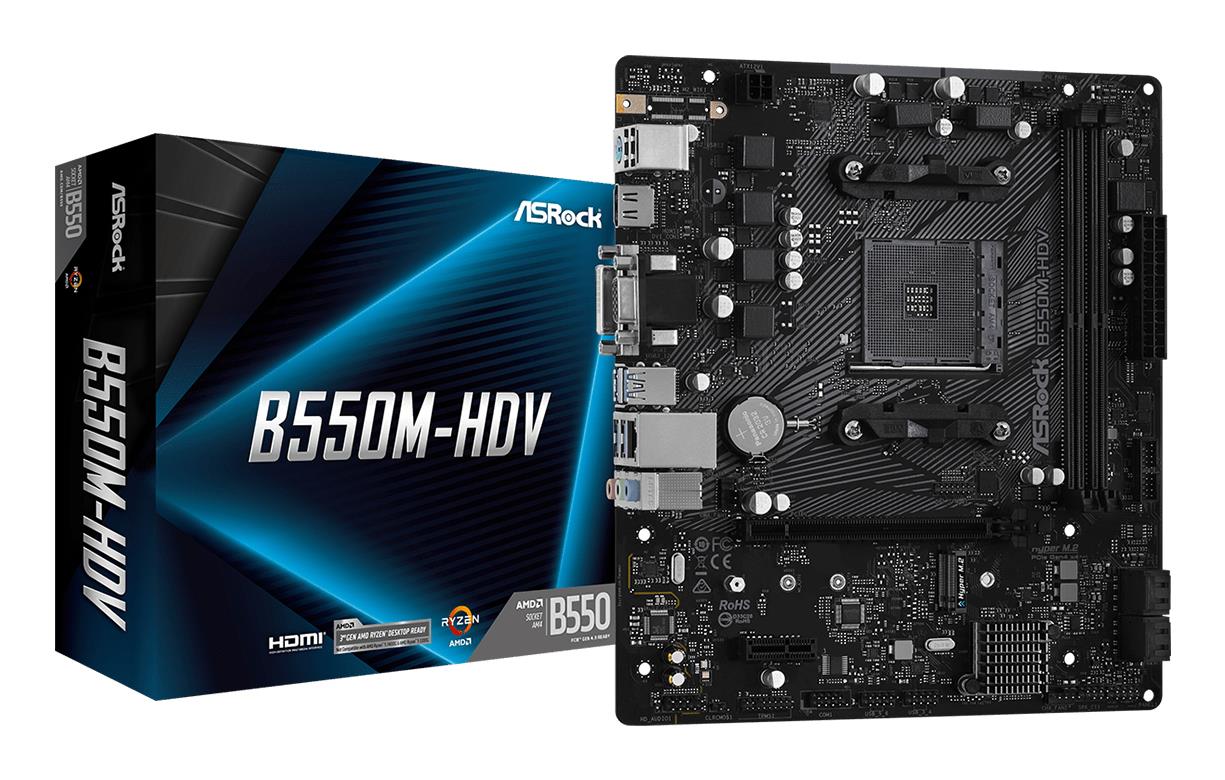

Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 2|1x15pin D-sub|1xDVI|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B550M-HDV

  • Produkta kods: B550M-HDV
  • EAN: 4710483931635
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

96.29 €

79.58 € (bez PVN 21%)

21

24.11.

Apraksts

6 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Hyper M.2 (PCIe Gen4 x4)
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
  • 6 Power Phase Design
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Gigabit LAN

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsAsrock B550M-HDV. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Graphics card family: AMD, Graphics card: Radeon Vega. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Ražotāja datu lapahttps://www.asrock.com/mb/AMD/B550M-HDV/index.asp#Overview
Vienības kastes augstums0.21
Vienības kastes garums0.06
Vienības kastes platums0.27
product_attr.MATES_PLATES_CHIPSETAMD B550
product_attr.AUDIO_MIKROSHEMARealtek ALC887
product_attr.KOMPONENTEDatoriem
Mātesplates formas faktorsMicro ATX
product_attr.AUDIO_IZVADES_KANALI7.1 kanāli
product_attr.MATESPLATES_MIKROSHEMOJUMA_SAIMEAMD
product_attr.PROCESORA_RAZOTAJSAMD
Procesora ligzdaSocket AM4
Savietojamie procesoriAMD Ryzen 3000 Series
product_attr.SMO_PROCESORU_MAKSIMALAIS_SKAITS1
Atbalstītie atmiņas veidiDDR4-SDRAM
product_attr.ATMINAS_SLOTU_SKAITS2
product_attr.ATMINAS_SLOTU_TIPSDIMM
product_attr.ATMINAS_KANALIDual-channel
product_attr.ECC_SAVIETOJAMIBAAr ECC un bez ECC
product_attr.ATBALSTITIE_ATMINAS_PULKSTENA_ATRUMI2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666 MHz
Maksimālā iekšējā atmiņa64 GB
product_attr.NEBUFERETA_ATMINAY
Atbalstītie glabāšanas diska interfeisiM.2,SATA III
product_attr.INTEGRETS_GRAFIKAS_ADAPTERISY
product_attr.GRAFIKAS_ADAPTERA_GIMENEAMD
product_attr.GRAFISKAIS_ADAPTERISRadeon Vega
HDCPY
DirectX versija12.0
product_attr.USB_20_SAVIENOTAJI4
product_attr.USB_32_GEN_1_31_GEN_1_SAVIENOTAJI2
product_attr.SATA_III_SAVIENOTAJU_SKAITS4
product_attr.PRIEKSEJA_PANELA_AUDIO_SAVIENOTAJSY
ATX barošanas savienotājsY
product_attr.CPU_VENTILATORA_SAVIENOJUMSY
product_attr.KOMUTATORA_VENTILATORU_SKAITS2
product_attr.PERIFERAS_MOLEX_STRAVAS_SAVIENOTAJI_4PIN1
product_attr.TPM_SAVIENOTAJSY
USB 2.0 pieslēgvietu skaits2
product_attr.USB_32_GEN_1_31_GEN_1_A_TIPA_PIESLEGVIETU_SKAITS4
Ethernet LAN RJ45 pieslēgvietu skaits1
product_attr.PS2_PIESLEGVIETU_SKAITS1
VGA D-Sub pieslēgvietu skaits1
HDMI pieslēgvietu skaits1
DVI-D pieslēgvietu skaits1
Ethernet LAN savienojumsY
product_attr.ETHERNET_INTERFEISA_TIPSGigabit Ethernet
product_attr.LAN_KONTROLLERSRealtek RTL8111H
Ieslēgšanās pie signāla no LANY
Wi-FiN
product_attr.BIOS_TIPSUEFI AMI
product_attr.HARMONIZETAS_SISTEMAS_HS_KODS84733020
Platums230 mm
Dziļums201 mm
Augstums70 mm
Draiveri iekļautiY
Svars465 g
product_attr.VIENIBAS_APREKINATAIS_SVARS0.92 kg
product_attr.PRECES_NETO_SVARS0.8 kg
Vienības aprēķinātais tilpums0.004045 cubm
product_attr.VIENIBU_SKAITS_VIENA_SUTIJUMA_KASTE20
Kastes svars18.4 kg
product_attr.VIENIBAS_PLATUMS27 cm
Kastes augstums45 cm
product_attr.VIENIBAS_DZILUMS6 cm
Kastes dziļums62 cm
product_attr.VIENIBAS_AUGSTUMS21 cm
Kastes platums29 cm
NosaukumsMB AMD B550 SAM4 MATX/B550M-HDV ASROCK
