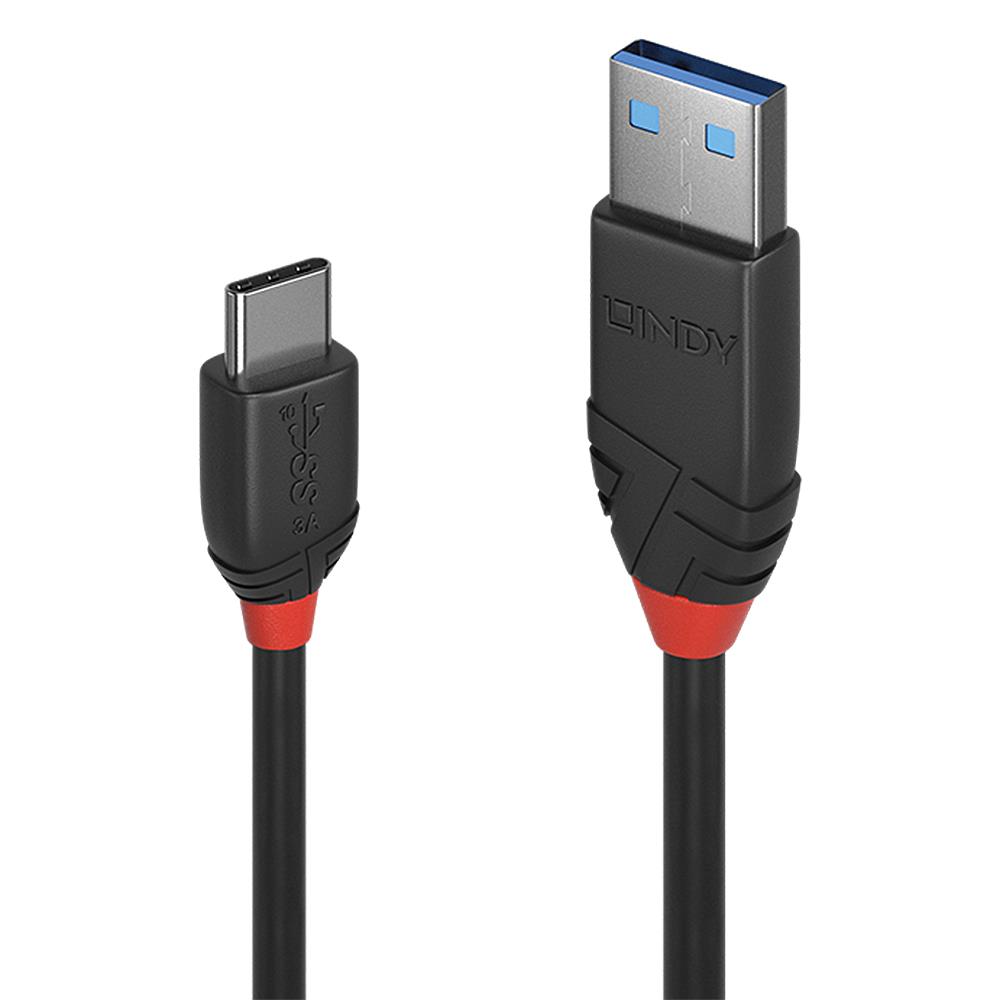

CABLE USB3.2 A-C 1M/BLACK 36916 LINDY

  • Produkta kods: 36916
  • EAN: 4002888369169
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

14.95

12.53 € (bez PVN 21%)

12

23.07.

Apraksts

The Black Line USB 3.2 Type A to C cables from Lindy\'s Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.

USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.5m, 1m and 1.5m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

  • Entry level USB 3.2 Gen 2 Type A to C cable for home and small office applications
  • SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
  • Robust PVC housing, nickel connectors, gold plated contacts
  • Triple shielded cable, corrosion resistant tinned copper conductors
  • 10 year warranty

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsLindy 1m USB 3.2 Type A to C Cable, 10Gbps, Black Line. Cable length: 1 m. Connector 1: USB A, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 10 Gbit/s, Connector contacts plating: Gold, Product colour: Black
Ražotāja datu lapahttps://www.lindy.co.uk/cables-adapters-c1/usb-c449/1m-usb-3-2-type-a-to-c-cable-10gbps-black-line-p11447
Vienības kastes augstums0.01
Vienības kastes garums0.15
Vienības kastes platums0.13
Minimālais liekuma rādiuss45 mm
Kabeļa diametrs4.5 mm
Kabeļa garums1 m
1. savienotāja izmēri (W x D x H)15.5 x 35.1 x 7.8 mm
2. savienotāja izmēri (W x D x H)11 x 25.5 x 7.3 mm
AWG vada izmērs26/30/30
Kabeļa apvalka materiālsPolyvinyl chloride (PVC)
Kabeļa tipsRound cable
Vadītāja materiālsTinned copper
Savienotājs 1USB A
Savienotāja 1 formas faktorsStraight
Savienotāja 1 dzimumsMale
Savienotājs 2USB C
Savienotāja 2 formas faktorsStraight
Savienotāja 2 dzimumsMale
Savienotāja kontaktu apšuvumsGold
Savienotāja korpusa materiālsPolyvinyl chloride (PVC)
Savienotāja materiālsNickel
product_attr.CONNECTOR_SHIELD_MATERIALAluminium
product_attr.CONNECTOR_SHIELDINGYes
Kontakta materiālsPhosphor bronze
Maksimālais datu pārsūtīšanas ātrums10 Gbit/s
Maksimālais datu pārsūtīšanas ātrums10000 Mbit/s
Nominālais vājinājums0.5Mhz ?" 15Ghz 40db
Pievieno un lietoYes
Produkta krāsaBlack
USB versijaUSB 3.2 Gen 1 (3.1 Gen 1)
Iepakojuma tipsPolybag
Daudzums uz pakotnes1 pc(s)
Darbības temperatūra (T-T)-20 - 80 °C
Glabāšanas temperatūra (T-T)-25 - 85 °C
SertifikācijaRoHS, REACH, UL
Harmonizētās sistēmas (HS) kods84733080
Modeļa nosaukums1m USB 3.2 Type A to C Cable, 10Gbps, Black Line
Vienības piegādes kastē1
Vienības aprēķinātais tilpums0.000195 cubm
Vienības aprēķinātais svars0.045 kg
