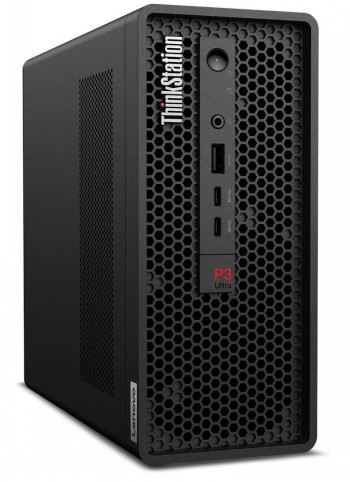

Lenovo ThinkStation P3 Ultra Gen2 is a small-form-factor workstation with big performance. It was designed from the ground up to support stable operation of professional-grade components in cooperation with NVIDIA and Intel. The chassis footprint has been reduced by up to half compared to a traditional SFF case. High-performance Intel Core Ultra Series 2 processors and NVIDIA professional graphics stay cool thanks to the new double-sided system board and advanced airflow?yet the enclosure is only 3.9 liters. The optional Baseboard Management Controller (BMC) remote management and a 3U rack-mount kit also make it an excellent choice as a rack-mounted backend device.
P3 Ultra can now be configured for even greater expandability with up to three PCIe expansion slots as a factory-built order. Contact the F9 Lenovo team for more information on expansion options and for pricing requests.
Key features:
- Operating system Windows 11 Pro
- Intel® Core? Ultra 7 265K
- 8 P-core Base 3.9, Max 5.4GHz
- 12 E-core Base 3.3, Max 4.6GHz
- 36MB Intel Smart Cache
- Base Power 125W
- Intel AI Boost NPU
- Intel vPro Enterprise management
- Chipset Intel W880
- Memory 32GB DDR5 5600MHz SODIMM (2x16GB)
- Maximum memory 96GB (2x48GB) DDR5-5600 SODIMM or 128GB (2x64GB) DDR5-6400 CSODIMM
- No free SODIMM slots
- Intel Graphics
- NVIDIA® RTX A400 4GB
- 512GB SSD M.2 2280 PCIe Gen 4x4 Performance NVMe Opal (Gen5 slot)
- Two free PCIe Gen 4x4 M.2 slots on the motherboard
- NVMe RAID 0/1/5 support
- Intel I219-LM Gigabit Ethernet
- Intel® Wi-Fi® 7 BE200, 802.11be 2x2 + BT5.4
- Display connectors: 3x DisplayPort 1.2 (Intel graphics) + 4x MiniDP (NVIDIA)
- Front connectors: 2x USB-C 3.2 Gen2x2, 1x USB-A 3.2 Gen2, 3.5mm audio combo
- Rear connectors: 4x USB-A 3.2 Gen2, 1x RJ45
- No free PCIe expansion slots
- USB keyboard and optical mouse
- Kensington lock (3 x 7mm)
- External 330W Slim Tip power adapter
- Dimensions 87 x 223 x 202 mm
- Weight 3.6 kg
- MIL-STD-810H tested
- Base warranty 3 years on-site
Environmental and energy certifications
- ENERGY STAR® 9.0, RoHS compliant, TCO Certified 10.0
