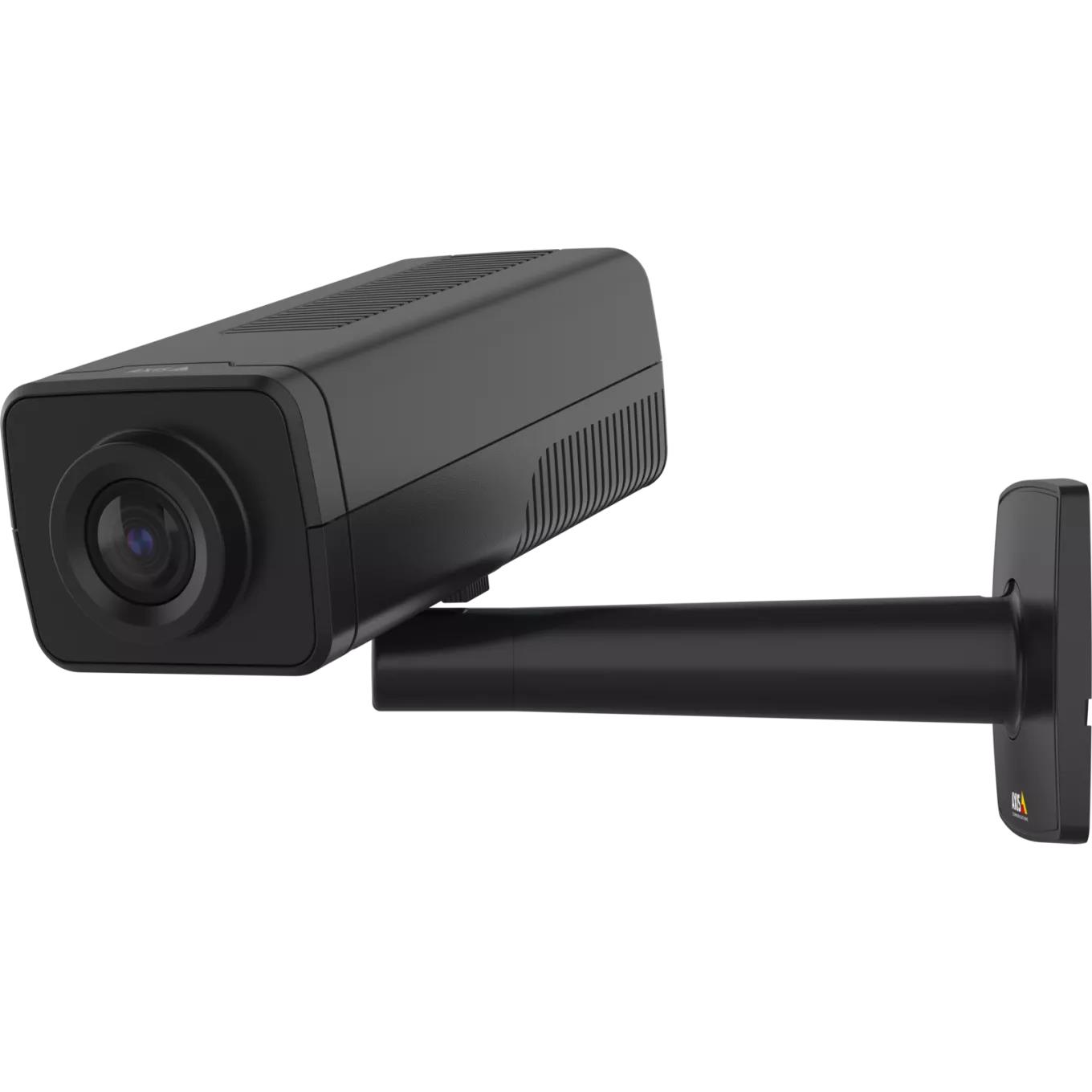

NET CAMERA Q1728 BLOCK/02840-001 AXIS

  • Produkta kods: 02840-001
  • EAN: 7331021085114
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

1855.92 €

1533.82 € (bez PVN 21%)

0

Paredzamā pieejamība:9.10.2026.

Apraksts

Built on ARTPEC-9, this AI-powered block camera offers accelerated performance and lets you run impressive analytics applications on the edge. It’s possible to use your existing housing or upgrade to new housing, making it a more environmentally friendly option.

Superior image quality
AXIS Q1728 offers 4K resolution at 60 fps and features a large 1/1.2" sensor to ensure consistent performance even in low light. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. What’s more, it’s available in two variants with a choice of lenses: a wide (6-13 mm) lens with a 108°-49° horizontal field of view for surveillance in wide, open areas, and a tele (15-48 mm) lens with a 42°-13° horizontal field of view for great detail at long distances. Plus, the built-in lens with remote zoom and focus is perfectly calibrated to save you time and effort.

Flexible today and tomorrow
With the flexibility to use various types of enclosures, this compact and lightweight camera with integrated optics helps ensure you preserve the value of your investment. That’s because it has a standardized design that can fit into most enclosures including Axis, third-party housing, and custom enclosures. It’s also backward compatible so you can mount it in your existing outdoor enclosure. Plus, this future-proof camera can also be mounted in new enclosures ensuring you have the flexibility to respond to future requirements.

ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

Powerful with strong security
Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you’ll be notified if your image is blocked, degraded, under exposed, or redirected. In addition, AXIS Live Privacy Shield address-es privacy laws and regulations and offers AI-based dynamic masking so you can detect movement and activities while safeguarding privacy. Furthermore, Axis Edge Vault, a hardware-based cybersecurity plat-form, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.

  • Superior image quality in 4K
  • Designed to fit into most enclosures
  • Next-generation AI-powered analytics
  • Wide or tele lenses available
  • Built-in cybersecurity with Axis Edge Vault

Šim produktam ir 60 mēnešu garantija.

Parametri

KopsavilkumsAxis Q1728. Type: IP security camera, Placement supported: Outdoor, PTZ modes: Digital PTZ. Mounting type: Pole clamp, Product colour: Black, Form factor: Box. Horizontal field of view (thermal module): 42 - 13°, Camera pixel size: 2.9 µm, Camera shutter speed: 1/66500 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Lens diameter: 4.8 cm, Normal focusing range: 1.5 m, Detect distance (wide): 211 m
Ražotāja datu lapahttps://www.axis.com/products/axis-q1728#overview
Vienības kastes augstums0.1
Vienības kastes garums0.24
Vienības kastes platums0.23
Formas faktorsBox
Montāžas veidsPole clamp
Produkta krāsaBlack
Korpusa materiālsAluminium/Plastic
TipsIP security camera
Novietojums atbalstītsOutdoor
PTZ vadībaYes
PTZ režīmiDigital PTZ
Plašs dinamiskais diapazons (WDR)Yes
Dienas/nakts režīmsYes
Gaismas plūsma0.05 lm
Termiskā moduļa horizontālais skata lauks42 - 13 °
Kameras pikseļa izmērs2.9 µm
Kameras aizvara ātrums1/66500 s
Optiskā sensora izmērs1/1.2 "
Sensora tipsCMOS
Objektīvu skaits1
Objektīva diametrs48 mm
Automātiska fokusēšanaYes
Noteikšanas attālums (tālais fokuss)672.9 m
Noteikšanas attālums (platleņķa)211 m
Identifikācijas attālums (tele)67.3 m
Identifikācijas attālums (plats leņķis)21.1 m
Normālais fokusēšanas diapazons1.5 m
Novērošanas attālums (tele)267 m
Novērošanas attālums (platleņķa)83.7 m
Atpazīšanas attālums (tele)134.6 m
Atpazīšanas attālums (platleņķa)42.2 m
Nakts redzeYes
Maksimālā izšķirtspēja3840 x 2160 pixels
Atbalstītie video formātiAV1/H.264/H.265/M-JPEG
Atbalstītā grafikas izšķirtspēja2560 x 1600 (WQXGA)/2592 x 1944/3840 x 2160
Kadru nomaiņas ātrums60 fps
Video straumēšanaYes
Trokšņa samazināšanaYes
Trokšņa samazināšanas tehnoloģija2D noise reduction,3D noise reduction
Pastiprinājuma vadības tipsAuto
Bitu ātruma vadībaVariable Bit Rate (VBR)
Attēla kvalitātes regulēšanaBrightness/Contrast/Saturation/Sharpness
Atbalstītie audio formātiAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS
Signāla/trokšņa attiecība (SNR)55 dB
Ethernet/LANYes
Atbalstītie tīkla protokoliIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSc , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
Iebūvēts HDDYes
HDD ietilpība4 GB
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Zibatmiņa8000 MB
Ethernet LAN (RJ-45) pieslēgvietas1
RS 422 porti1
RS 485 porti1
Austiņu izejas1
Drošības algoritmiEAP-TLS/HTTPS/PEAP/TLS
Barošanas avota tipsDC
Enerģijas patēriņš (tipiskais)7.5 W
Enerģijas patēriņš (maks.)12.95 W
Līdzstrāvas izejas spriegums10,12,15,16,24,28
Darbības temperatūra (T-T)-10 - 60 °C
Glabāšanas temperatūra (T-T)-40 - 65 °C
Darbības relatīvais mitrums (H-H)10 - 85 %
Glabāšanas relatīvais mitrums (H-H)5 - 95 %
Svars611 g
Kameru skaits1
Vienības aprēķinātais svars2 kg
Produkta neto svars0.611 kg
Vienības aprēķinātais tilpums0.00552 cubm
Vienības piegādes kastē1
Kastes svars2 kg
product_attr.UNIT_WIDTH23 cm
Vienības paletē0
Kastes augstums10 cm
product_attr.UNIT_DEPTH24 cm
Kastes dziļums24 cm
product_attr.UNIT_HEIGHT10 cm
Kastes platums23 cm
NosaukumsNET CAMERA Q1728 BLOCK/02840-001 AXIS
