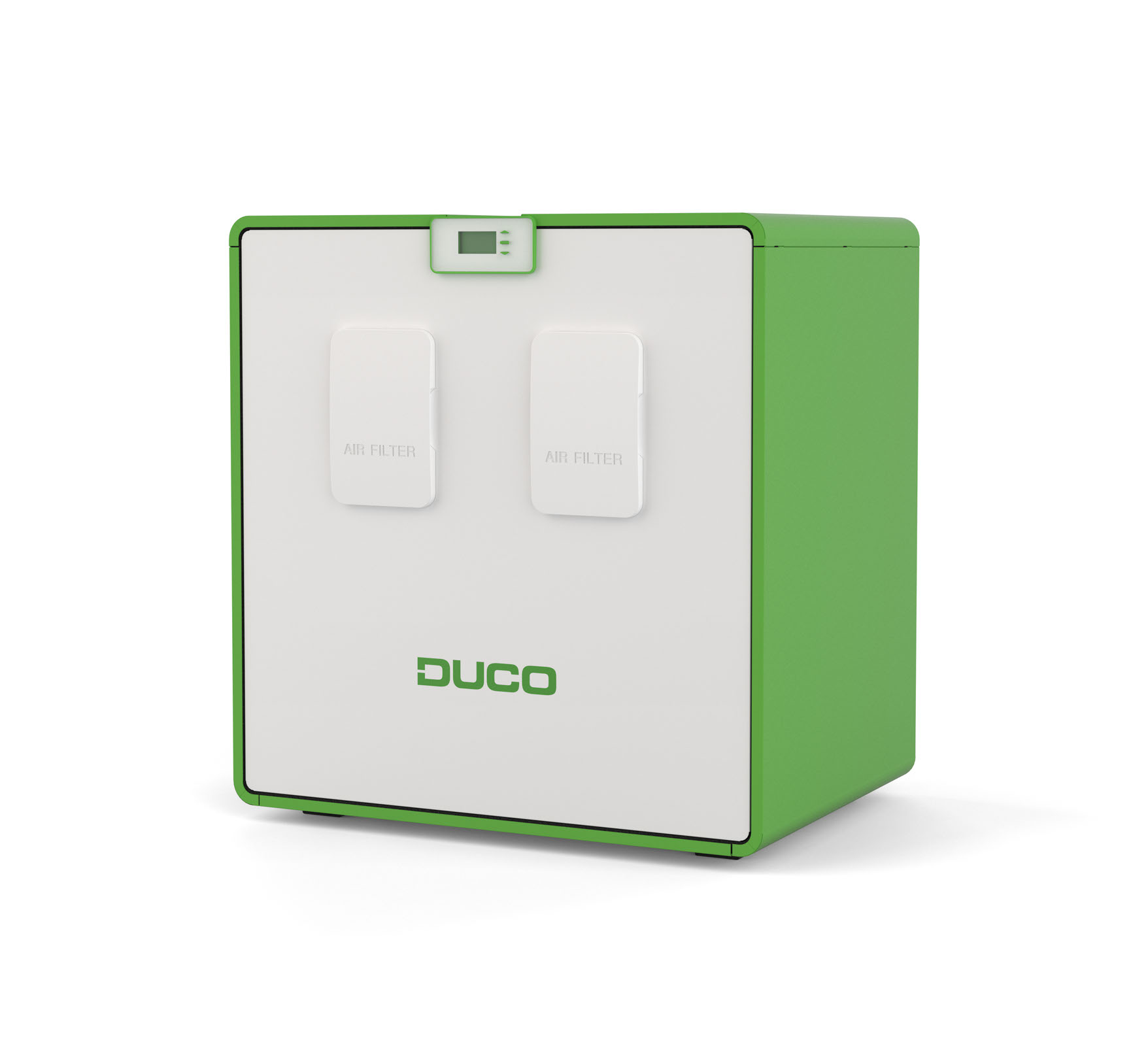

DUCO | DucoBox Energy Comfort Plus D550
Šim produktam ir 24 mēnešu garantija.
DUCO - DucoBox Energy Comfort Plus D550
- Produkta kods: 0000-4706
- EAN: 5425037156493
- Stāvoklis: Jauns
| Cena | Skaits | Piegāde | |
|---|---|---|---|
3934.44 € 3251.78 € (bez PVN 21%) | 1 | 24.07. |
Apraksts
Parametri
| Bruto dziļums (mm) | 610.00 mm |
|---|---|
| Bruto augstums (mm) | 823.00 mm |
| Bruto svars | 49.35 kg |
| Bruto platums (mm) | 810.00 mm |
| Neto svars | 47.00 kg |
| Iepakojuma daudzums | 1.00 pcs |
| Taras svars (kg) | 2.35 kg |
| Tilpums (m³) | 0.41 m³ |
| Iegults akumulators | No |
| EEIA nodoklis | CL109:4:2017-04-01 |
| Ražotājs | DUCO |
| Paletes daudzums | 2 pcs |
| Papīrs/kartons | 1880 g |
| Plastmasa (bez PET) | 471 g |
| Ražotāja produkta nosaukums | DucoBox Energy Comfort Plus D550 |
| Izmēri (P x A x G) | 760 x 803 x 584 mm |
| Savienojumi | Internal diameter: 180 mm |
| Produkta krāsa | White/Green |
| Svars | 47 kg |
|---|---|
| Kabeļa garums | 2 m |
| Montāža | Wall mounting (standard), Floor mounting as an option using a support frame |
| Materiāls | Inside section: EPP, PP, ABS |
| Siltummainis | v1: PP-v2: PET/Alu |
| Apvalks | Coated sheet steel |
| Kondensāta novadīšana | 32 mm |
| Energoefektivitātes klase | A+ |
| Filtrs | Dynamic airflow filter supply air, Standard, Optional |
| Sensori | Integrated: pressure, temperature, onboard switch sensor; External: CO2 (via optional Room sensor), Humidity (via optional Room sensor or measurement in ETA duct), external Switch Sensor (voltage-free input) (optional) |
| Barošanas avots | 230 V, 50 Hz via 3-core power cable with earthed plug |
| Motora tips | DC |
| IP klase | IP40 |
| Efektivitāte | 84.7 % |
| Plūsmas ātrums | 550 m³/h |
| Spiediens (Pa) | 150 Paskāls |
| Ražotāja datu lapa | https://www.duco.eu/en/products/mechanical-ventilation/ventilation-units/ducobox-energy-comfort |
