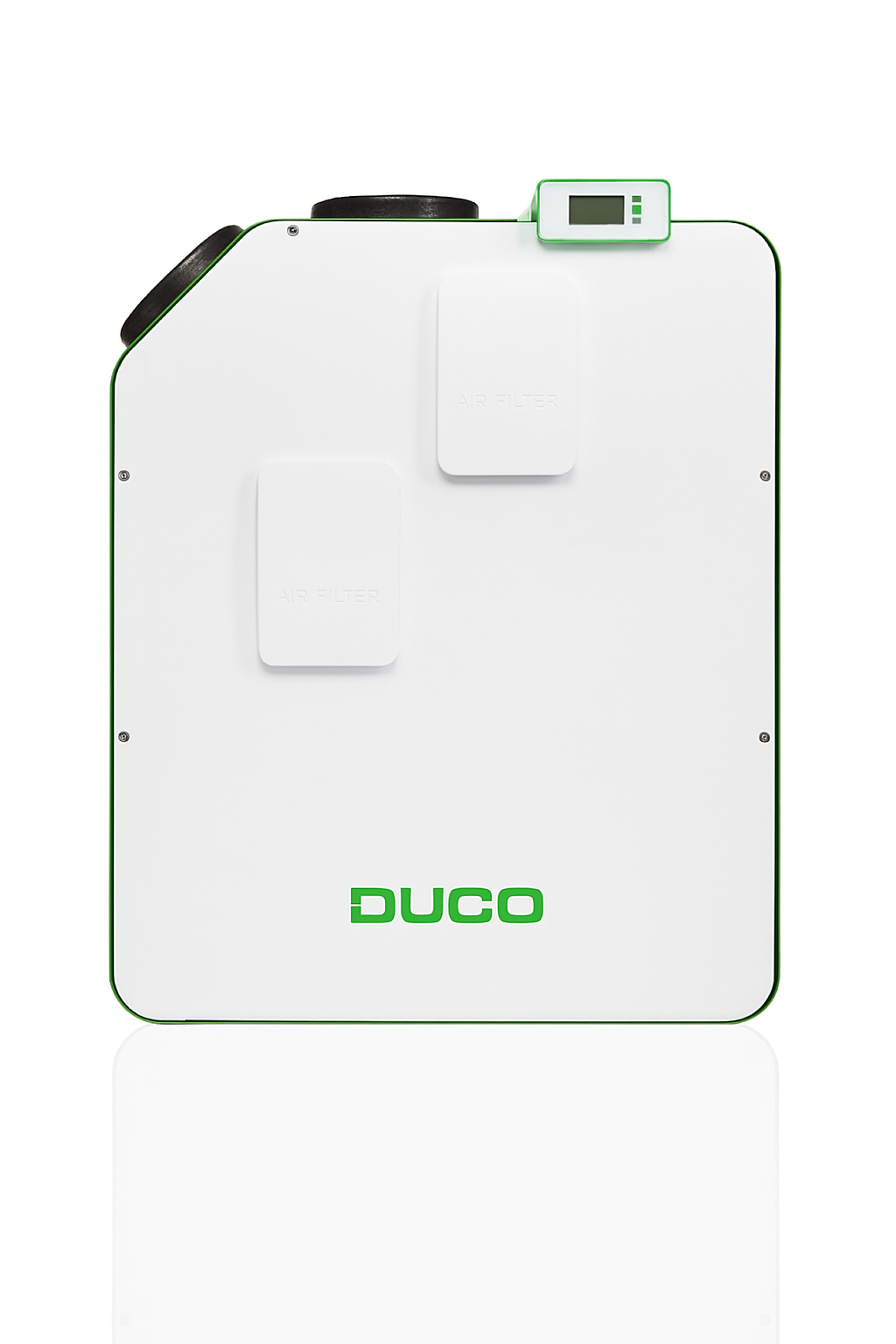

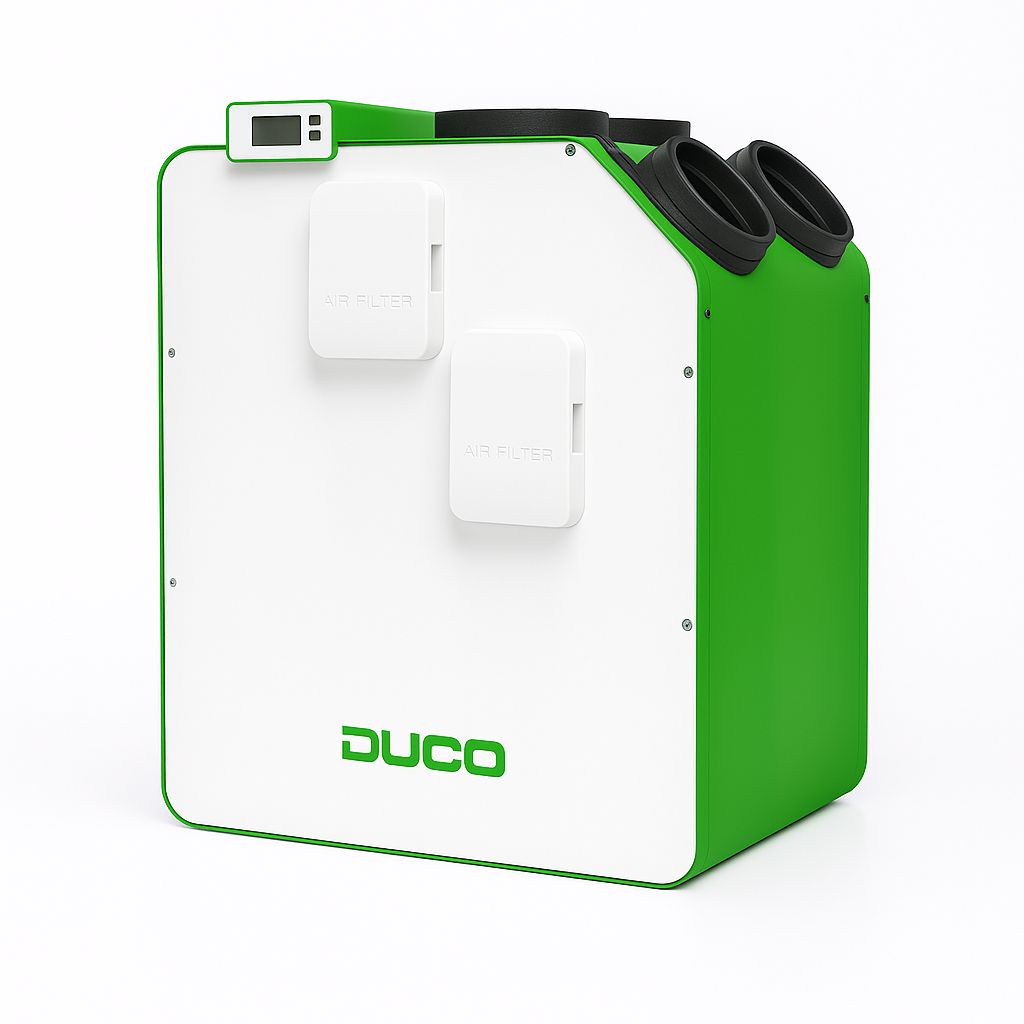

DUCO | DucoBox Energy Premium 325 - 1ZH - Right 1
Šim produktam ir 24 mēnešu garantija.
DUCO - DucoBox Energy Premium 325 - 1ZH - Right 1
- Produkta kods: 0000-4361
- EAN: 5425037152792
- Stāvoklis: Jauns
| Cena | Skaits | Piegāde | |
|---|---|---|---|
2848.23 € 2353.91 € (bez PVN 21%) | 1 | 24.04. |
Apraksts
Parametri
| Bruto dziļums MM | 740.00 mm |
|---|---|
| Bruto augstums MM | 1050.00 mm |
| Bruto svars | 50.96 kg |
| Bruto platums MM | 610.00 mm |
| Net Svars | 47.00 kg |
| Packing daudzums | 1.00 pcs |
| Tare svars KG | 3.95 kg |
| Tilpums M3 | 0.47 m³ |
| Embeed akumulatora | No |
| EEIA nodoklis | CL109:4:2017-04-01 |
| Ražotājs | DUCO |
| Paletes daudzums | 4 pcs |
| Papīra Pasteboard | 3164 g |
| Plastmasas No Pet | 791 g |
| Producer produkts nosaukums | DucoBox Energy Premium 325 - 1ZH - Right 1 |
| Savienojumi | Internal diameter: 160 mm; External diameter: 190 mm |
| Produkta krāsa | White/Green |
| Svars | 47 kg |
| Kabeļa garums | 2 m |
| Montāža | Wall mounting (standard), Floor mounting as an option using a support frame |
|---|---|
| Materiāls | Inside section: EPP, PP, ABS |
| Siltummainis | PET/Polystyrene |
| Apvalks | Coated sheet steel |
| Kondensāta novadīšana | 32 mm |
| Energy klase | A+ |
| Filtrs | Filter supply air, Standard, Optional |
| Sensori | Integrated: pressure, temperature, humidity (via optional Box sensor), onboard switch sensor; External: CO2 (via optional Sensor), Humidity (via optional Sensor), external Switch Sensor (volt-free input) (optional) |
| Maksimālā jauda | 1000 W |
| Barošanas avots | 230 V, 50 Hz via 3-core power cable with earthed plug |
| Motors Tips | DC |
| Ip Klase | IP40 |
| Efektivitāte | 89 % |
| Plūsmas ātrums | 325 m³/h |
| Spiediens PA | 150 Paskāls |
| Izmēri Wxhxl | 740 x 957 x 585 mm |
| Garantija | 24 mēnesis(i) |
| Ražotājs datu lapa | https://www.duco.eu/en/products/mechanical-ventilation/ventilation-units/ducobox-energy-premium |
